Amlogic S805 with Digital Television Isdb-t Receiver Tv Philippines HR-GTI28

  • Description:HR-GTI28 is a android Isdb-t standard receiver for Digital Television Philippines,japan,Brazil,Chile,Argentina and South America television.4 USB Port, 1HDMI Port, SPDIF,AV,TF CARD available.
  • CPU:Amlogic?S805 Quad core Cortex A5
  • GPU:Quad-core Mali-450MP GPU @ 600MHz
  • System:Android 4.4.2 (KitKat)
  • RAM:1GB DDR3
  • ROM:8GB, 16GB(optional)
  • Interface:HDMI 1.4 1080P Support;4*USB HOST 4 High speed USB 2.0,support U DISK and USB HDD; 1*TF CARD;1*AV;1*SPDIF;1*RF IN DVB RF IN 1*RF OUT;DVB RF LOOPOUT;Power DC Adapter ( 12V/1A)
  • Email:9657@androidtvbox-factory.com
  • Detail

  • Contact Us

Amlogic S805 Android Box with Digital Television Isdb-t Receiver Tv Philippines

MOQ:1000 pcs
OEM &ODM Support


Quad-core Android4.4 STB Hybrid

Isdb-t Tv Philippines

Hardware:

CPU: Amlogic S805 Quad core Cortex A5
GUP: Quad-core Mali-450MP GPU @ 600MHz
3D Hardward 3D graphics acceleration
Memory DDRIII 1GB
Flash Nand Flash 8GB ( 4~32GB Optional  )
WiFi Built in 2.4G WiFi
Blutooth Optional
IR Infra Remote control
LED Indicator Power ON :blue; Standby :Red?
Mould Private Tooling
3G Support most external 3G USB dongle

ISDB-T ISDB-T system standard:B-CAS

Symbol Rates: QPSK,16QAM,64QAM,DQPSK
Input Frange range:? 44 MHz to 885 MHz  Input Impedance:75 Ω
Guard interval: 1/4,1/8,1/16,1/32
Forward error correction rate 1/2,2/3,3/4,5/6,7/8
Bandwith: 6MHz
IFFT length: 2K,4K,8K
Input Signal level: -85 dBm to  0 dBm (average power)
ANT. Connector:IEC TYPE, female Loop Outpur:IEC TYPE, male

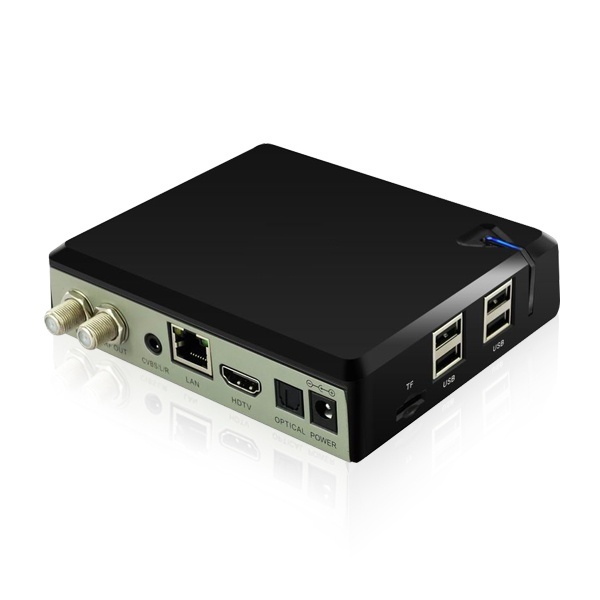

I/O

HDMI 1.4 1080P Support

4*USB HOST 4 High speed USB 2.0,support U DISK and USB HDD
1*TF CARD Support 1~32GB
1*AV AV output
1*SPDIF Audio output
1*RJ45 10/100 BaseT
Power DC Adapter ( 12V/1A)
1*RF IN DVB  RF IN
1*RF OUT DVB  RF LOOPOUT

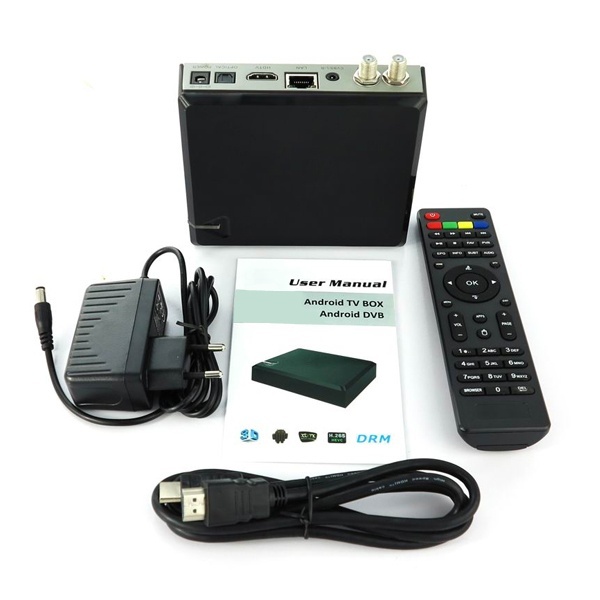

Accessories

Adapter

Gift Box
IR remote control
HDMI Cable
User Manual

Software

OS Android 4.4.2 (KitKat)
Decoder HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10
Video AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG
Music MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE
Photo HD JPEG/BMP/GIF/PNG/TIFF
Adobe Flash Adobe Flash 10.1 support or above
Support Language Chinese , English ,Germany ,Japanese, Korea  etc.  24 languages
WiFi Hotpoint Support
Mouse/ Keyboard "Support mouse and keyboard via USB
Support 2.4G wireless mouse and keyboard via 2.4G USB dongle"
KODI Support local high-definition play, support plug-in installation and play
DRM Optional :Microsoft Playready,Verimatrix ,Google Widevine

Others support DLNA \AirPlay \Google TV Remote \LAN \Miracast \3D moive

Appliactions

Online Browse all  video websites ,support  Netflix ,Hulu ,Flicker , Picasa,Youtube,Twitter ,Facebook,etc
Apps download  freely form  android  market 、amazon appstore etc
Medium Local Media playback,support HDD, U disck ,SD card
Talk online Support  SKYPE video  call  , facebook ,twitter ,Netflix ,Youtube ,  etc
Others Support   Email , office suit etc

Loading

machine size: 130*120*32MM
Packaged size: 230*157*70mm
machine weight: 183g
Packaged weight:650g
PCS/CTN: 20

Carton Size: 480*375*335mm

Isdb-t Tv Philippines
