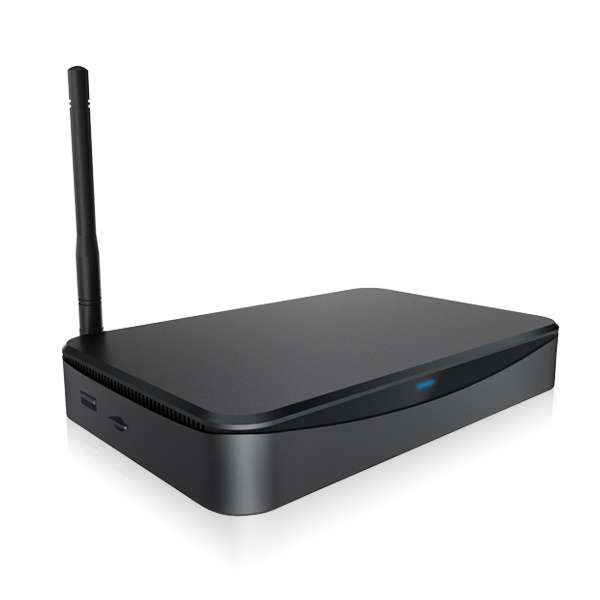

Android 5.1 UHD Octa Core RK3368 IPTV box OEM ODM OTT TV Boxes 2016 HR-GT2110A

  • Description:OEM ODM RK3368 Octa Core TV Box for IPTV and OTT TV operaters,Pre-installed your APK,Printing LOGO and Brand Name.The best android Octa core boxes in Xiyun Tech you deserved. 64 bit Octa-core ARM Cortex-A53 Box with 2.4Ghz air mouse fly keyboard optional.
  • CPU:(RK3368) 64 bit Octa-core ARM Cortex-A53
  • GPU:Octa Core Processor
  • System:Android 5.0
  • RAM:1GB DDR3 (2GB DDR3 optional)
  • ROM:8GB Nand Flash
  • Interface:Charge DC connector *1 DC IN(12V/at least 1000mA);Video output:HDMI *1 1.4a female, Up to 1080P/60Hz;CVBS & Analog audio*1 3.5mm jack;USB port; Ethernet *1; Recovery button *1
  • Email:9657@androidtvbox-factory.com
  • Detail

  • Contact Us

Android 5.1 UHD Octa Core RK3368 IPTV box OEM ODM OTT TV Boxes 2016


Item:RK3368 Octa Core TV Box

Model number: HR-GTT2110A
plastic case size: 162*105*22(mm)
Color:Black
Solution:(RK3368) 64 bit Octa-core ARM Cortex-A53
Basic parameters
Architecture Octa-Core Cortex-A53
Frequency up to 1.5MHz

Video accelerator: Yes
3D accelerator:Yes
RAM Capacity:1GB DDR3(2GB Optional)

ROM Capacity:8GB Nand/EMMC flash (4/16/32GB Optional)

External storage:

USB Storage Devices
Supported (Mobile HDD need external power supply)
SATA HDD:NA

Micro SD card: Up to 32GB


 Octa Core TV Box Software

Operating system: OS Version Android 5.0

Language:Multi-language



 Octa Core TV Box Multimedia:

Video format:DAT, MPG MPEG,VOB,TS,TRP,TP
Video Decoder: MPEG-1,MPEG-2,MPEG-4 ASP,MPEG-4 AVC (H.265,H.264),H.263,WMV9(VC-1),WMV3(VC-1),RV 8/9/10
Online Video:http,hls,rtsp,mms,rtmp

Resolution:Up to 1920*1080P or above


 Octa Core TV Box Media Sharing:

Miracast(Wi-Fi direct) Optional
DLNA  Optional
Airplay Optional
Smartphone gamestick Optional
DRM:Windvine,Playready,Verimatric Yes(Windvine Level 3 is ready)
IRDA Receiver:Built-in Supported
OTA:OTA background Supported

3rd party launche: XBMC(Kodi) Optional


 Octa Core TV Box Network service

Wi-Fi Type; Wi-Fi 802.11b/g/n(820.11ac/a/b/g/n Optional)
Cryptographic algorihms:WPA,WPA2
Mode:AP6181 (AP6210/AP6330/AP6335 Optional)
Frequency:2.4GHz (5.8GHz Optional)
Antenna Type:Single
Bluetooth:Built-in Optional
Mode:AP6210 (AP6330/AP6335 Optional)
Version V4.0
External USB module Support



 Octa Core TV Box Interface

Charge DC connector *1 DC IN(12V/at least 1000mA)

 Octa Core TV Box Video output:

HDMI  2.0 female, Up to 1080P/60Hz


 Octa Core TV Box Audio output

Fiber Optic *1 SPDIF
3.5mm Earphone jack:NA
Micro SD: External memory *1 Slot, support  up to 32GB
USB port:USB host *2 USB2.0 normal type


Ethernet:Ethernet *1
Button:Recovery button *1


Body Material: ABS+PC
Storage temperature: -10℃ ~+ 50℃
Operating temperature: 0℃ ~ + 35℃



 Octa Core TV Box Cerifications(For Unit)

Standarsd:CE TBD when M.P
RoHS TBD when M.P

Others Optional:FCC,3C,TELEC(MIC),NCC,Anatel,KCC,C-tick,PSE,CTS…

Standart Accessories: User manual, IrDA remote control, AC Adapter
Optional Accessories: 5V, 1.5A Adapter,HDMI cable



 Octa Core TV Box Packing:

Unit Size:162x105x22(mm);

Unit Weight: 210g
