Android Hybrid TV Receiver Box HR-GTS28

  • Description:TV Box Hybrid,Digital TV Receiver,TV Receiver Box.MOQ:2000PCS, Branded with your logo and brand.Support neutral packing mini order.Quad Core Android Hybrid TV Box With ATSC tuner,HR-GTS28 Hybrid Android TV Box Support most external 3G USB.
  • CPU:Amlogic S805 Quad core Cortex A5 up to 1.5Ghz
  • GPU:Octo-core Mali-450MP GPU @ 600MHz Android Hybrid TV Box
  • System:Android 4.4.2 (KitKat) Decoder: HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-
  • RAM:DDRIII 1GB
  • ROM:Nand Flash 8GB (32GB Optional)

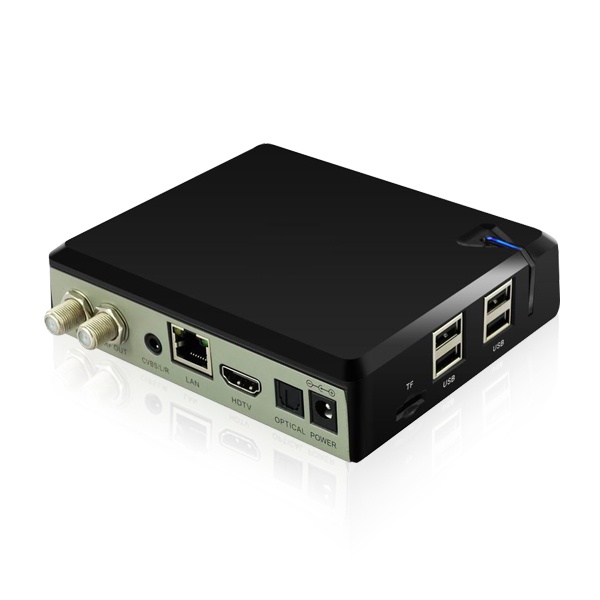

  • Interface:HDMI / 4 USB HOST / TF CARD / AV or Y/Pb/Pr / SPDIF / Power input
  • Email:9657@androidtvbox-factory.com
  • Detail

  • Contact Us

Android Hybrid TV Box Support DVB-S2  for IPTV Box Operators

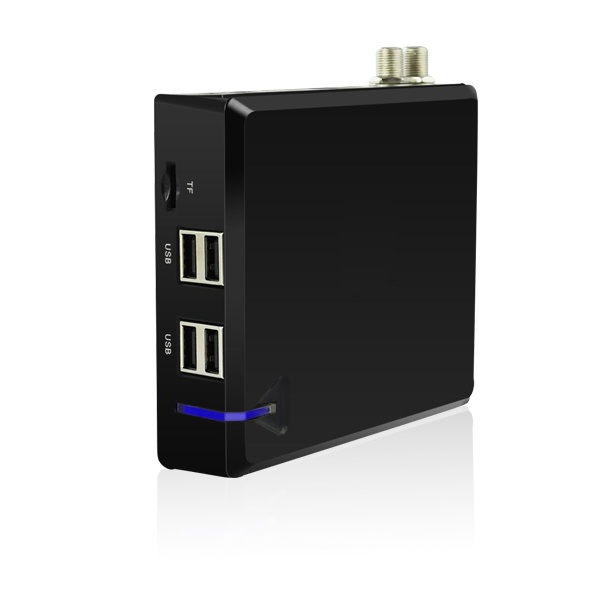

HR-GTS28

Hybrid TV Box

Hybrid TV Box

Hybrid TV Box

Hybrid TV Box

Hybrid TV Box

Hybrid TV Box

Hybrid TV Box

Hybrid TV Box

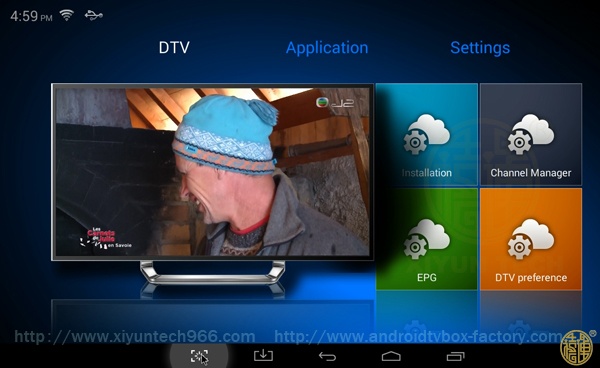

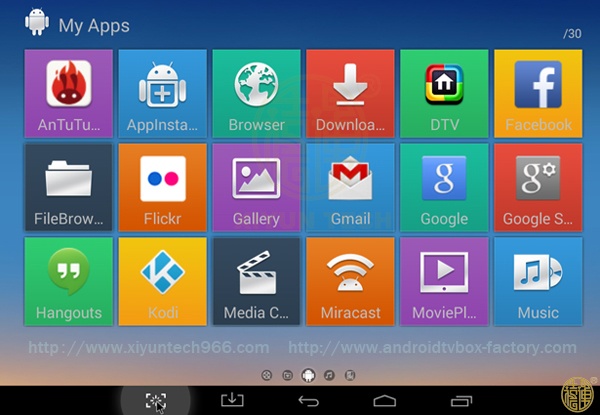

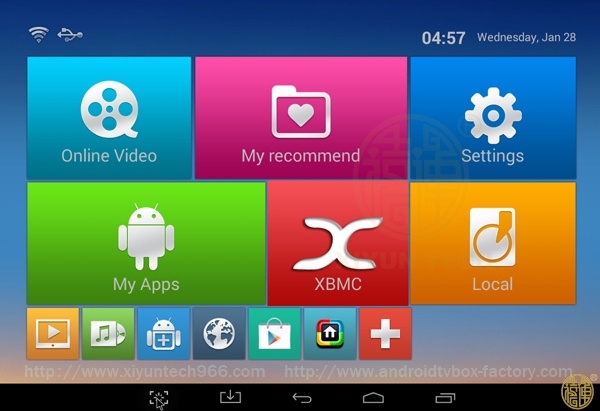

Hybrid TV Box  UI

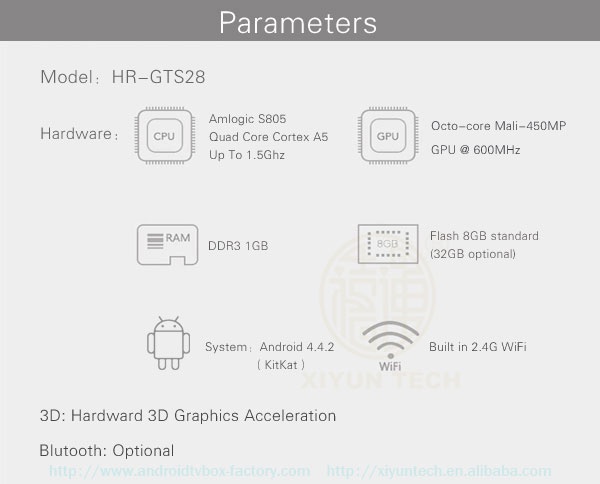

Android Hybrid TV Box Main Features

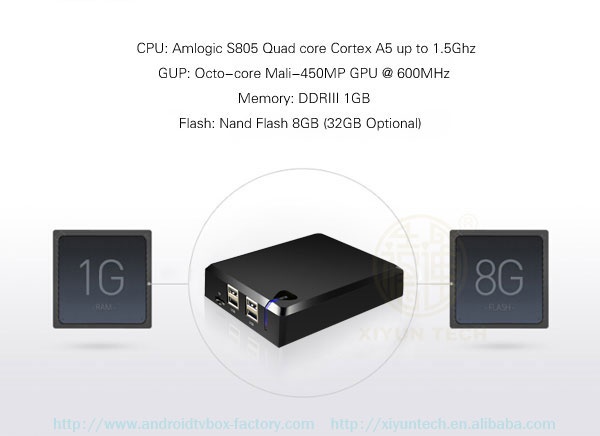

1. CPU: Amlogic S805 Quad core Cortex A5 up to 1.5Ghz

2. GUP: Octo-core Mali-450MP GPU @ 600MHz

3. 3D: Hardward 3D graphics acceleration

4. Memory: DDRIII 1GB

5. Flash: Nand Flash 8GB (32GB Optional)

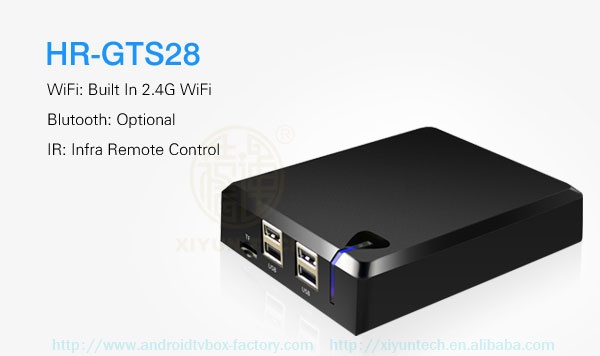

6. WiFi: Built in 2.4G WiFi

7 .Blutooth: Optional

8. IR: Infra Remote control

9. LED Indicator: Power ON :blue; Standby :Red

10. Mould: Private Tooling

11. 3G: Support most external 3G USB dongle

12. HDMI 1.4: 1080P Support

13. 4*USB HOST: 4 High speed USB 2.0,support U DISK and USB HDD

   1*TF CARD: Support 1~32GB

   1*AV: AV output

   1*SPDIF: Audio output

   1*RJ45: 10/100 BaseT

14.Power: DC Adapter ( 12V/1A)

   1*RF IN: DVB  RF IN

   1*RF OUT: DVB  RF LOOPOUT

15.CCCam: Support

16.Newcamd: Support

17.Biss: Support DVB-S2

   DEMO:AVL6211

  TUNER:AV2012

18.DVB-S2 system standard:ETS 302 307

19.Symbol Rates: QPSK,8PSK

20.Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10

21.Carrier frequency acquisition range: ±5MHz for symbol rates above 3

Msps and ±3MHz for the remaining symbol rates

22.Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35

23.Symbol Rates: 1- 55 Msps

24.Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8

25.Input Signal level: -84 dBm to  0 dBm (average power)

26.ANT. Connector:IEC TYPE, female Loop Outpur:IEC TYPE, male


Digital TV Receiver


Digital TV Receiver Specifications

1.OS: Android 4.4.2 (KitKat)
2.Decoder: HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-
1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10
3.Video: AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG
4.Music: MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE
5.Photo: HD JPEG/BMP/GIF/PNG/TIFF
6.Adobe Flash: Adobe Flash 10.1 support or above
7.Support Language: Chinese , English ,Germany ,Japanese, Korea  etc.  24 languages
8.WiFi Hotpoint: Support
9.Mouse/ Keyboard:

    Support mouse and keyboard via USB
    Support 2.4G wireless mouse and keyboard via 2.4G USB dongle
10.XBMC: Support local high-definition play, support plug-in installation and play
11.DRM: Optional :Microsoft Playready,Verimatrix ,Google Widevine
12.Others: support DLNA \AirPlay \Google TV Remote \LAN \Miracast \3D moive
13.Online: Browse all  video websites ,support  Netflix ,Hulu ,Flicker,  Picasa, Youtube, Twitter, Facebook,etc

14.Apps: Apps download  freely form  android  market 、amazon appstore etc
15.Medium: Local Media playback,support HDD, U disck ,SD card
16.Talk online: Support  SKYPE video  call  , facebook ,twitter ,Netflix,Youtube ,  etc
17.Others: Support   Email , office suit etc

Digital TV Receiver


Digital TV Receiver

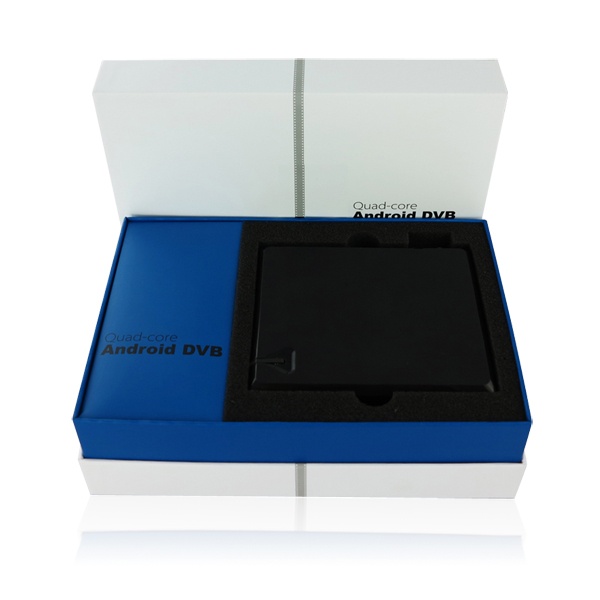

Android Hybrid TV Box Packing

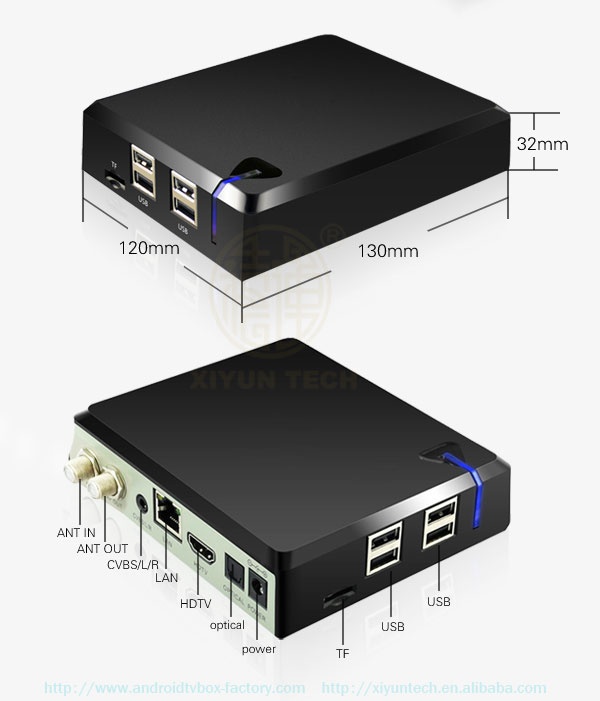

1.product dimension:130*120*32MM
2.qty per unit packing:1pc unit packing: (LxWxH):230*157*70mm
3.unit packing (G.W.):0.65kg
4.qty per export carton:20pcs
5.export carton (WxHxL):480*375*335mm
6.export carton (G.W.):13.5kg ±0.5"

 Hybrid TV Box

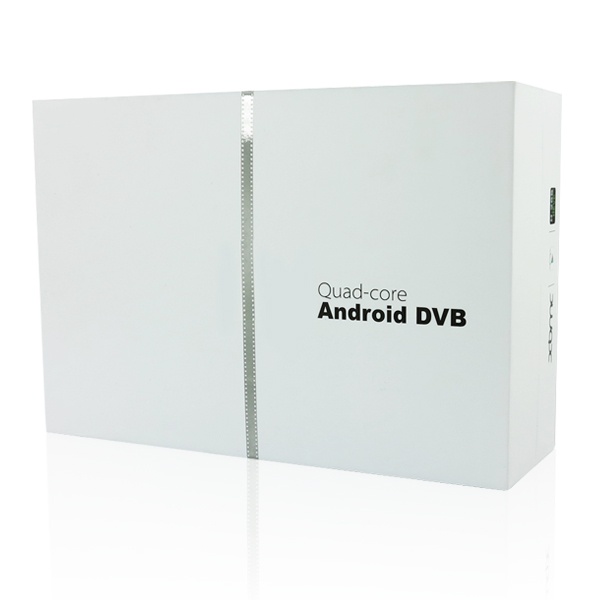

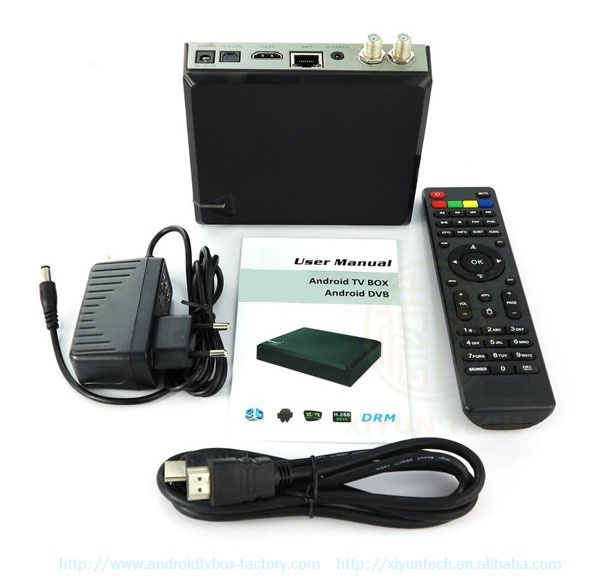

 Hybrid TV Box Packing
