Best IPTV Set Top Box DVB S2 HD Receiver HR-S22

  • Description:MOQ:1000pcs,Shenzhen Xiyun Technology Mstar7816+AV2011 solution, IPTV Set Top Box,DVB S2 HD, DVB S2 Receiver to the dvb s2 tv and dvb s2 satellite, We support OEM and ODM solutions for this satellite dvb s2.
  • CPU:Mstar7816+AV2011
  • GPU:HD DVB-S2 Set Top Box Receiver
  • System:FTA Mstar7816 Solution MPEG4 H.264 HD DVB-S2 Satellite Set Top Box Receiver & USB 2.0 PVR & HDMI & Media Player
  • RAM:SD RAM 1GB
  • ROM:Flash Memory 64MB
  • Interface:USB 2.0 Port, AV Output,AV output,Coaxial, L/R, HDMI,RF Input
  • Email:9657@androidtvbox-factory.com
  • Detail

  • Contact Us

Best IPTV HD Set Top Box DVB S2 HD Receiver (120 mm Plastic Case)

Model number:HR-S22

MOQ:1000 Pcs

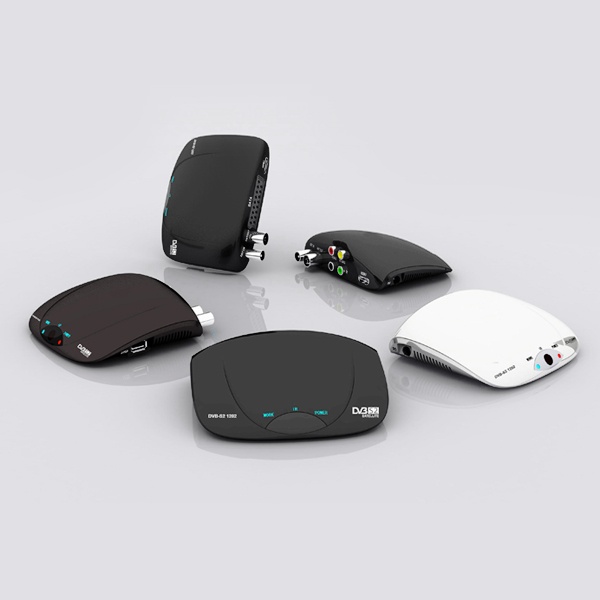

DVB S2 Receiver

DVB S2 Receiver Specifications:

1.In what color can make:Black/white/silver

2.Front panel:Various for choose, Mental Case 110/180/220*38*120mm
3.Solution: Mstar7816 solution:MPEG4 H.264 HD DVB-S2 Satellite Set Top Box Receiver & USB 2.0  PVR & HDMI & Media Player

DVB S2 Receiver Features:

1. Fully DVB-S/DVB-S2/MPEG-2/HD MPEG-4/H.264 compliant
2. SCPC & MCPC receivable from C/Ku band satellites,
3. Support Full HD 1080P, HDMI 576i, 576p, 720p,1080i,1080p
4. DiSEqC 1.0/1.1/1.2/1.3(USALS) supported
5. Aspect ratio 16:9 and 4:3
6. CVBS/RGB/YPbPr/HDMI/Scart output supported,
7. Universal LNB, NIT search support
8. DiSEqC1.0/DiSEqC1.2 and USALS protocols
9. Electronic program guide (EPG), VBI Teletext, Supports up to 64 satellites
10. Up to 2,500 transponders, Frequency range: 950 -- 2,150MHz
11. USB 2.0 port PVR, multi-media player
12. Support up to 5000 channels
13. Video resolution: 576i, 576p, 720p and 1080i,1080p
14. Auto/Manual Program search, Multi-language supported
15. USB 2.0 for PVR, Timeshift, Software upgrade, Multimeida Playback, OTA software upgrade
16. Transmission mode: LDPC/BCH (DVB-S2) 8PSK/QPSK, DVB-S QPSK
17. Multimedia format: Picture: JPEG,BMP,PNG, Audio: MP3/M4A/AAC/WMA/ASF, Video: MKV、AVI、DIVX、XVID、MOV、VOB、FLV、3GP、DAT MPEG、MPG、MP4、TS、TRP …
18.Accessories: User Manual,  Remote control,  RCA Cable
19.Optional Accesssories:Scart Cable (optional),  Antenna (optional),  HDMI Cable (optional)

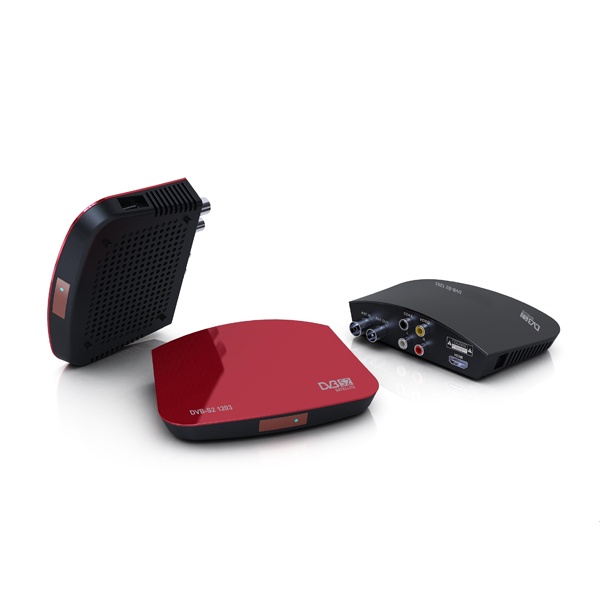

DVB S2 Receiver

More DVB S2 HD Specifications:

1.Powerful Multimedia Features
2.Photo: JPEG, BMP, PNG
3.Audio: MP3/M4A/AAC/WMA/ASF

4.Video:MKV,AVI,DIVX,XVID,MOV,VOB,FLV,3GP,DAT,MPEG,MPG,MP4,TS,TRP …

 DVB S2 HD Tuner:

1..Input frequency: 950 to 2,150MHz
2.Input level: -79 to -11dBm
3.Symbol rate: 1 to 45M
4.Input impedance: 75 Ω

FTA DVB S2 HD Channel Decoding:

1.Wave form: 64/16/4QAM
2.Demodulation: QPSK、8PSK、16APSK、32APSK, (DVB-S /S2)
3.Transmission mode Core : LDPC/BCH (DVB-S2) 8PSK/QPSK,DVB-S QPSK
4.Rate: 1/2, 2/3, 3/5, 3/4, 4/5, 5/6, 8/9, and 9/10

FTA DVB S2 HD Demultiplexer:

1.Standard: ISO/IEC 13818-1, MPEG-2TS
2.Symbol rate: 1 to 45M

DVB S2 Receiver Video Decoding:

1.Standard:ISO/IEC13818-14 -2/-3/-7,MPEG-2/MPEG-4AVC/H.264,Divx
2.Aspect ratio: 4:3, 16:9
3.Video format: PAL / NTSC/ AUTO
4.Video resolution: 1080p/1080i/720p/576p/576i(PAL),1080p/1080i/720p/480p/480i(NTSC)

DVB S2 Receiver Audio Decoding

1.Standard: ISO/IEC 13818-1 -2/-3/-7
2.Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3
3.Output Mode: L/R, Coaxial, HDMI, Scart
4.Sampling frequency:32, 44.1, 48KHz

 DVB S2 Receiver Processor and Memory
1.CPU: Mstar MST7816
2.Frequency: 216 MHz
3.SDRAM: 1GB

4.Flash Memory:64MB

DVB S2 Receiver AV Output

1.Video de-emphasis: CCIR REC.405-1, 1080i
2.Video bandwidth: 5.5 MHz
3.Video output impedance:75 Ω
4.Video output level: 1.0Vp-p
5.Audio output: Coaxial, L/R, HDMI
6.Audio output frequency: 20Hz ~ 20KHz
7.Audio output impedance:Low

8.Audio output level: A 1.0Vrms ± 2dB into 10K

IPTV Set Top Box Hardware Interface

1.Indicators: Power, signal lock

2.IR Receiver: 38KHz
3.AV output:  YUV, HDMI, Composite Video
4.RF Input: 75Ω F Type Female Connector
5.Loop Through Out: 75Ω F Type Female Connector
6.USB:  USB2.0

7.Power input Spec.: 90—260V AC 8W max

IPTV Set Top Box Package List:

110mm Plastic with external power board:
(Remote Control, User Manual,RCA cable,Power adaptor, User Manul )
Giftbox: 160*55*170mm
Carton: 355*295*335mm  20pcs/carton
G.W.: 8.10KG,
N.W.: 7.60KG
20"": 16,520 PCS
40"": 33,040PCS

40""HQ: 37,040PCS

DVB S2 Receiver
