Digital HD DVB ATSC HDTV Tuner Set Top Box HR-A72

  • Description:MOQ:5000 PCS 120MM Plastic Case DVB ATSC,ATSC Tuner Box,HD ATSC Tuner, Digital ATSC HDTV Tuner set top box made in China Shenzhen Xiyun Tech.
  • CPU:HD MPEG4 ATSC-T + Media Player+ USB PVR
  • GPU:IF input frequency: 56-866MHz;Channel Decoding:ATSC tuner
  • System:Mstar 7802 MPEG4 H.264 HD DVB-T STB & Media Player & USB PVR & USB2.0 & HDMI
  • RAM:Channel Decoding Mode: 2K, 8K
  • ROM:Demodulation: 8VSB
  • Interface:HDMI, Coaxial, CVBS, L/R AUDIO, YUV
  • Email:9657@androidtvbox-factory.com
  • Detail

  • Contact Us

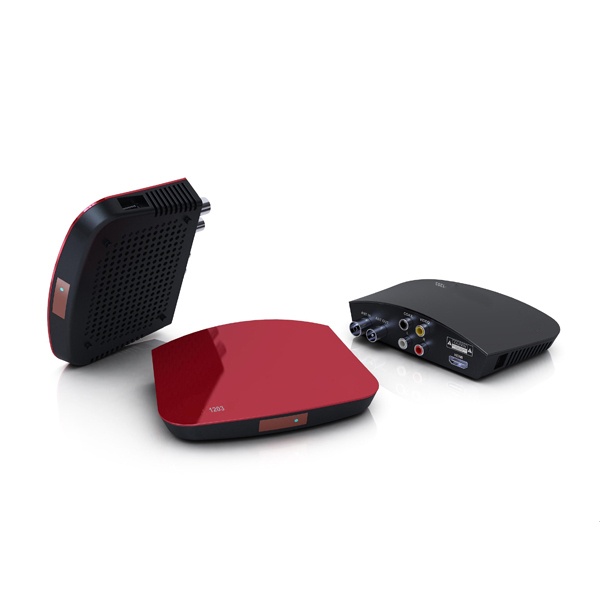

Mstar 7802 Digital HD DVB ATSC HDTV Tuner Set Top Box
HD MPEG4 ATSC-T + Media Player+ USB PVR
Model number:HR-A72

In what color can make:Black,Red

120 MM Plastic Case

MOQ:5000pcs


ATSC Tuner Box

ATSC Tuner Box Features:

1.Fully ATSC compliant, support full HD 1080p
2.Support  SD/HD MPEG2 and MPEG4 AVC H.264
3.Auto and manually scan all available TV and radio channels
4.Aspect ratio 16:9 and 4:3
5.HDMI, Scart/RCA, coaxial output, L/R audio
6.Multi-language subtitle output supported
7.Powerful and highly effective 7-day EPG function
8.Supports teletext
9.Parental lock
10.PVR, timeshift, software upgrade via USB 2.0
11.USB media playback
12.Four Digits LED Display,
13.Accessories:Remote control, User Manual, RCA cable, Adaptor(5V)
14.Optional Accesssories:HDMI Cable (optional, 1m, 1.2m, 1.5m, 1.8m)

ATSC Tuner Box Specifications:

Solution:Mstar 7802 MPEG4 H.264 HD DVB-T STB & Media Player & USB PVR & USB2.0 & HDMI
1.Powerful Multimedia Features
2.Photo: JPEG,BMP,PNG
3.Audio: MP3,WMA
4.Video: MKV、AVI、DIVX、XVID、MOV、VOB、FLV ,  DAT、MPEG、MPG、MP4 …

ATSC Tuner Box Tuner:

1.IF input frequency: 56-866MHz
2.Bandwith: 6MHz
3.Input level: -83dBm
4.Signal input: IEC-type female

ATSC Tuner Box Channel Decoding

1.Standard: ATSC
2.Demodulation: 8VSB
3.FEC:1/2, 2/3, 3/4, 5/6, 7/8, automatic
4.Mode: 2K, 8K
5.Guard: 1/4,1/8,1/16,1/32

ATSC Tuner Box Demultiplexer

1.Standard ISO/IEC 13818-1; ARIB STB-B1 Input max.
2.bit stream rate: 120Mbps (serial)/15MBps (parallel)

ATSC Tuner Box Rear panel output

1.HDMI 576i, 576p, 720p and 1080i,1080P
2.Loop through output: IEC-type, connector, single tuner, HDMI

ATSC Tuner Box Video Decoding

1.Standard:  MPEG-4 AVC/H.264 HP@L4
2.Port:HDMI, Coaxial, CVBS, L/R AUDIO, YUV
3.Aspect ratio: 4:3, 16:9
4.Video resolution: 576i, 576p, 720p and 1080i, 1080P

ATSC Tuner Box Audio Decoding

1.Standard: ISO/IEC 14.496-3
2.Audio mode: mono, dual-channel, stereo, Dolby AC3/E-AC3
3.Input Voltage:5V Adaptor
4.Power consumption:8W(max),Real Standby <1watt

ATSC Tuner Box Package List:

Giftbox: 170x55x185MM
Carton Box : 365x300x220MM (10 PCS/CTN)
NW/GW: 7.00/7.50KGS
20"": 12,400PCS
40"": 24,800PCS
40""HQ: 28,000PCS
