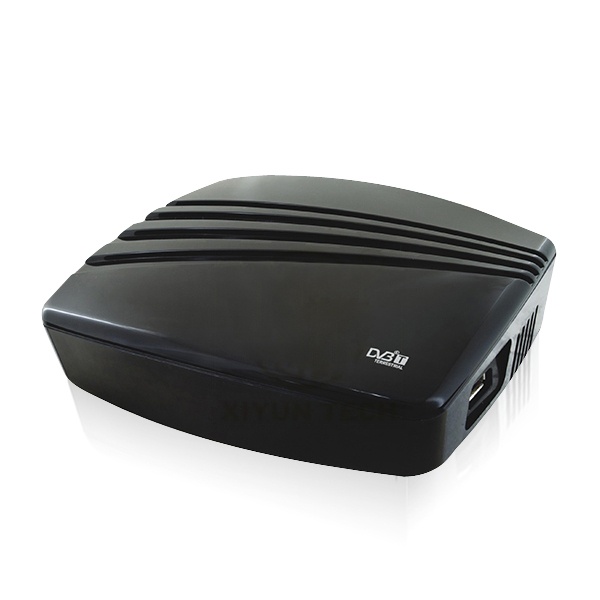

HD DVB T2 High Definition Set Top Box HR-T25

  • Description:High Definition Set Top Box,Streaming Media Devices MOQ:2000PCS, Branded with your logo and brand.HR-T25 for IPTV Projects. HD DVB-T2 FTA+USB PVR+Media Player
  • CPU:Standard:DVB-T(ETSI EN 300 744) /DVB-T2(ETSI EN 302 755)
  • GPU:HD DVB-T2 Set Top Box Receiver & Scart/Component & Composite & USB2.0 & PVR & HDMI
  • System:Novatek78316+MXL608
  • RAM:Full HD, support up to 1080P
  • ROM:USB device supported:NTFS,FAT32,FAT Jpeg/Audio combo playback
  • Interface:Scart/Component & Composite & USB2.0 & PVR & HDMI
  • Email:9657@androidtvbox-factory.com
  • Detail

  • Contact Us

HD DVB T2 High Definition Set Top Box Novatek78316+MXL608 Solution
HR-T25

High Definition Set Top Box

Features to High Definition Set Top Box:

1.HD DVB-T2 Set Top Box Receiver & Scart/Component & Composite & USB2.0 & PVR & HDMI

2.Fully SD/HD DVB-T(ETSI EN 300 744)/T2(ETSI EN 302 755),  SD/HD MPEG2 and  MPEG4 AVC H.264
3. Full HD, support up to 1080P
4. Auto and manually scan all available TV and radio channels
5.Aspect ratio 16:9 and 4:3
6. HDMI, YUV, RCA, coaxial output
7. Aspect ratio 16:9 and 4:3, 1000 channels memory
8. Multi-language subtitle output supported
9.  7-Day EPG function, VBI Teletext
10. Teletext/ Bit Map subtitle, compliant with ETS1
11. Support 7/8 MHz software setting
12. PVR, timeshift  via USB 2.0
13. Multimedia playback and software upgrade via USB 2.0
14. Parental control
15. Video resolution: 576i, 576p, 720p and 1080i,1080p
16. Audio standard: ISO/IEC 14.496-3
17. Audio mode: mono, dual-channel, stereo
18. Multimedia format:    Picture: JPEG,BMP,PNG,    Audio: MP3,WMA,   Video: DivX,MPG,MKV,MP4,AV


Accessories to High Definition Set Top Box:

1. User Manual,  Remote control,  RCA Cable, power adapter
2.Optional Accesssories Scart Cable (optional),  Antenna (optional),  HDMI Cable (optional)

Specifications to High Definition Set Top Box:

Powerful Multimedia Features
Photo: JPEG,BMP,PNG
Audio: MP3, WMA
Video: MKV、AVI、DIVX、XVID、MOV、VOB、FLV、3GP、DAT、MPEG、MPG、MP4、TS、TRP …
USB device supported: NTFS、FAT32、FAT
Jpeg/Audio combo playback

 High Definition Set Top Box Tuner

1.RF input frequency: 44-1002Mhz
2.Bandwith: 6/7/8MHz
3.Input level: -83dBm
4.Signal input: IEC-type female
5.Video standard: MPEG-4 AVC/H.264 HP@L4
6.Mpeg transport stream and A/V decoding
7.SCART video model CVBS/RGB (for Europe)
8.Aspect ratio: 4:3, 16:9
9.Video resolution: 576i, 576p, 720p and 1080i,1080P
10.Audio standard: ISO/IEC 14.496-3,AAC,AAC+
11.Audio mode: mono, dual-channel, stereo

 High Definition Set Top Box Standard

1.DVB-T(ETSI EN 300 744)
2.DVB-T2(ETSI EN 302 755)

High Definition Set Top Box Video Decoding

1.Standard: ISO/IEC 13818-2, MPEG-2 MP@ML, H.264
2.Aspect ratio: 4:3, 16:9
3.Video format: PAL / NTSC/ AUTO
4.Video resolution: 1080p/1080i/720p/576p/576i(PAL),1080p/1080i/720p/480p/480i(NTSC)
5.Audio Decoding
6.Standard: ISO/IEC 13818-3
7.Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3
8.Output mode: R/L, Coaxial, HDMI,CVBS,Ypb/pr、RGB、Sterio and digital audio

High Definition Set Top Box AV Output

1.Video de-emphasis: CCIR REC.405-1, 1080p
2.Video bandwidth: 5.5 MHz
3.Video output impedance:75 Ω
4.Video output level: 1.0Vp-p
5.Audio output: Coaxial, L/R, HDMI
6.Audio output frequency:20Hz ~ 20KHz
7.Audio output impedance:Low
8.Audio output level: A 1.0Vrms ± 2dB into 10K

9.Demodulation: QPSK, 16QAM, 64QAM, 256QAM
10.Code Rate: 1/2, 3/5,2/3, 3/4, 4/5, 5/6
11.Guard: from 1/128 to 1/4
12.FFT Mode: from 1K to 32K

High Definition Set Top Box Input Voltage

1.  5V Adaptor

2.  Power consumption    8W(max), Real Standby <1watt

High Definition Set Top Box Rear panel output:

HDMI
USB
ANT IN/ ANT OUT
CVBS
L/R AUDIO
SCART(optional)

High Definition Set Top Box Package List(120MM Plastic Case):

1.Giftbox:160 x 55 x 170 MM
2.Carton Box : 355 x295 x335MM ( 20 PCS/CTN)
3.NW/GW: 7.6/8.1KGS
4.20"": 16,520PCS
5.40"": 33,040PCS
6.40""HQ: 37,040PCS"
