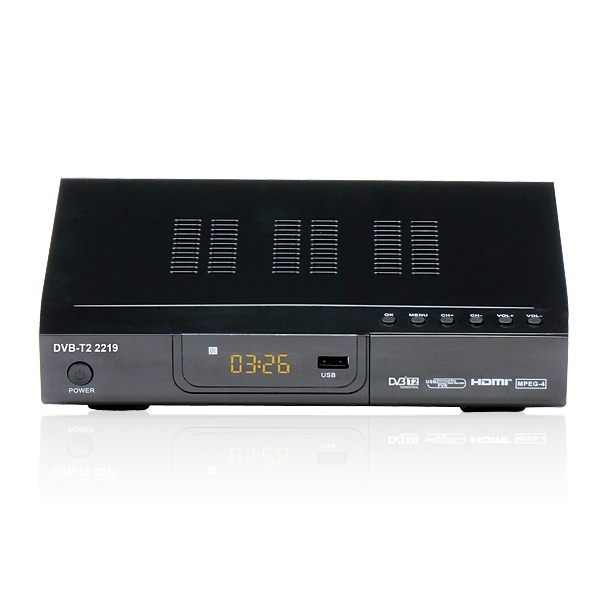

HD DVB-T2 Receiver + USB PVR + Media Player HR-T22

  • Description:Android Mstar 7802 Firmware Best Streaming TV Player,HD DVB T2 TV Receiver MOQ:2000PCS, Branded with your logo and brand.HD DVB-T2+ USB PVR + Media Player HR-T22,Fully SD/HD DVB-T/T2,SD/HD MPEG2 and MPEG4 AVC H.264.Full HD,support up to 1080P.
  • CPU:Mstar 7816/7802 + MXL603 tuner
  • GPU:DVB-T(ETSI EN 300 744) /DVB-T2(ETSI EN 302 755)
  • System:Output mode: R/L, Coaxial, HDMI,CVBS,Ypb/pr,RGB,Sterio and digital audio
  • RAM:Video resolution: 1080p/1080i/720p/576p/576i(PAL),1080p/1080i/720p/480p/480i(NTSC)
  • ROM:Audio output frequency:20Hz ~ 20KHz
  • Interface:Audio output: Coaxial, L/R, HDMI
  • Email:9657@androidtvbox-factory.com
  • Detail

  • Contact Us

HD DVB T2 TV Receiver +USB PVR+Media Player  Support 7/8 MHz  Software
(220MM Mental Case)

HR-T22

MOQ:2000 pcs

HD DVB T2 TV Receiver

Features to HD DVB T2 TV Receiver:

1. Fully SD/HD DVB-T/T2,  SD/HD MPEG2 and  MPEG4 AVC H.264

2. Full HD,support up to 1080P

3. Auto and manually scan all available TV and radio channels

4. Aspect ratio 16:9 and 4:3

5. HDMI, YUV, RCA, coaxial output

6. Aspect ratio 16:9 and 4:3, 1000 channels memory

7. Multi-language subtitle output supported

8. 7-Day EPG function, VBI Teletext

9. Teletext/ Bit Map subtitle, compliant with ETS1

10. Support 7/8 MHz software setting

11.PVR, timeshift  via USB 2.0

12. Multimedia playback and software upgrade via USB 2.0

13. Parental control

14. Video resolution: 576i, 576p, 720p and 1080i,1080p

15. Audio standard: ISO/IEC 14.496-3

16. Audio mode: mono, dual-channel, stereo

17.Multimedia format:    Picture: JPEG,BMP,PNG,    Audio: MP3,WMA,   Video: DivX,MPG,MKV,MP4,AV


Specifications toHD DVB T2 TV Receiver:

1.Powerful Multimedia Features

2. Photo: JPEG,BMP,PNG

3. Audio: MP3, WMA

4.Video: MKVAVIDIVXXVIDMOVVOBFLV3GPDATMPEGMPGMP4TSTRP …
6.Jpeg/Audio combo playback

5. USB device supported: NTFSFAT32FAT

HD DVB T2 TV Receiver Tuner

1.RF input frequency: 44-1002Mhz
2.Bandwith: 6/7/8MHz
3.Input level: -83dBm
4.Signal input: IEC-type female
5.Video standard: MPEG-4 AVC/H.264 HP@L4
6.Mpeg transport stream and A/V decoding
7.SCART video model CVBS/RGB (for Europe)
8.Aspect ratio: 4:3, 16:9
9.Video resolution: 576i, 576p, 720p and 1080i,1080P
10.Audio standard: ISO/IEC 14.496-3,AAC,AAC+
11.Audio mode: mono, dual-channel, stereo

HD DVB T2 TV Receiver Standard:

1.DVB-T(ETSI EN 300 744)
2.DVB-T2(ETSI EN 302 755)

HD DVB T2 TV Receiver

HD DVB T2 TV Receiver  Video Decoding

1.Standard: ISO/IEC 13818-2, MPEG-2 MP@ML, H.264
2.Aspect ratio: 4:3, 16:9
3.Video format: PAL / NTSC/ AUTO
4.Video resolution: 1080p/1080i/720p/576p/576i(PAL),1080p/1080i/720p/480p/480i(NTSC)
5.Audio Decoding
6.Standard: ISO/IEC 13818-3
7.Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3
8.Output mode: R/L, Coaxial, HDMI,CVBS,Ypb/pr、RGB、Sterio and digital audio


HD DVB T2 TV Receiver  AV Output

1.Video de-emphasis: CCIR REC.405-1, 1080p
2.Video bandwidth: 5.5 MHz
3.Video output impedance:75 Ω
4.Video output level: 1.0Vp-p
5.Audio output: Coaxial, L/R, HDMI
6.Audio output frequency:20Hz ~ 20KHz
7.Audio output impedance:Low
8.Audio output level: A 1.0Vrms ± 2dB into 10K
9.Demodulation: QPSK, 16QAM, 64QAM, 256QAM
10.Code Rate: 1/2, 3/5,2/3, 3/4, 4/5, 5/6
11.Guard: from 1/128 to 1/4
12.FFT Mode: from 1K to 32K

HD DVB T2 TV Receiver  Rear panel output

1.HDMI 576i, 576p, 720p and 1080i,1080P
2.Loop through output: IEC-type, connector, single tuner
3.Coaxial: RCAX1
4.YpbPr RCAX3
5.L/R audio RCAX2
6.CVBS

7.SCART(optional)

Package List(220MM Mental Case):

1.Giftbox:250*60*225MM
2.Carton: 375*260*235MM (6pcs/Carton)
3.G.W: 6.4 Kgs
4.N.W: 6 Kgs
5.20":5500PCS
6.40": 11000 PCS
7.40"HQ: 12,500PCS
