IPTV DVB-S2 MPEG4 FTA Satellite Receiver HR-S22

  • Description:MOQ:1000 pcs for OEM and ODM services of this 180MM IPTV Receiver,FTA Satellite Receiver,DVB-S2 MPEG4 Satellite Receiver in Shenzhen Xiyuntech manufacturer.
  • CPU:Mstar7816+AV2011
  • GPU:HD DVB-S2 IPTV FTA Satellite Receiver
  • System:FTA Mstar7816 Solution MPEG4 H.264 HD DVB-S2 Satellite IPTV Receiver & USB 2.0 PVR & HDMI & Media Player
  • RAM:SD RAM 1GB
  • ROM:Flash Memory 64MB
  • Interface:USB 2.0 Port, AV Output,AV output,Coaxial, L/R, HDMI,RF Input
  • Email:9657@androidtvbox-factory.com
  • Detail

  • Contact Us

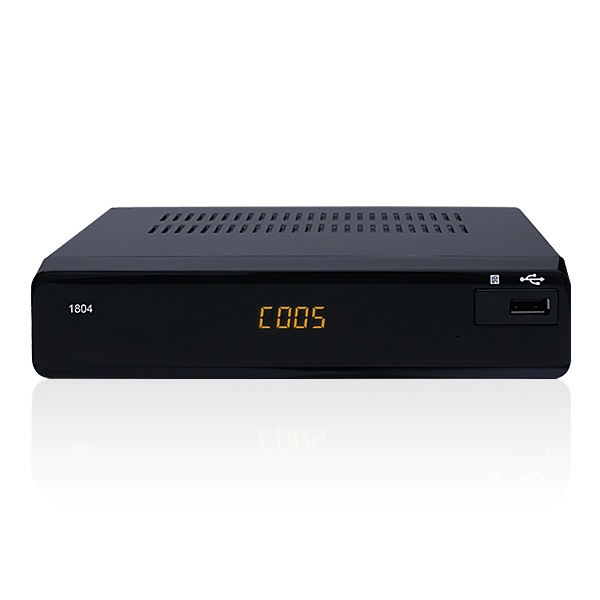

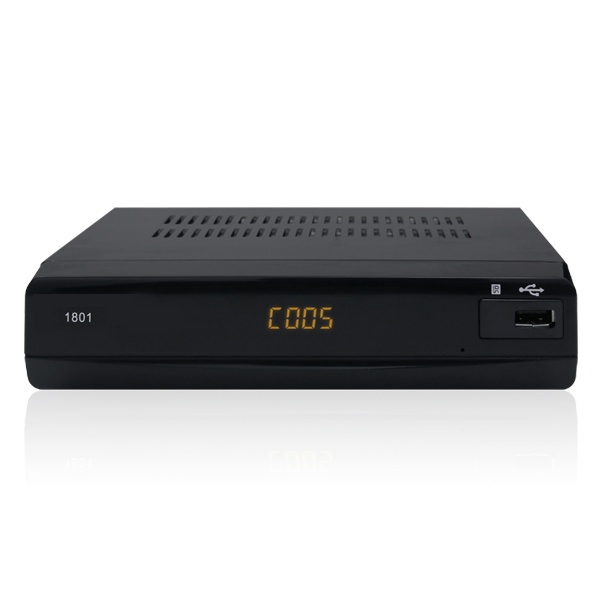

180 mm Mental Case IPTV DVB-S2 MPEG4 FTA Satellite Receiver HR-S22
(IPTV Receiver,FTA Satellite Receiver,DVB-S2 MPEG4 Satellite Receiver)

MOQ:1000 PCS

    FTA Satellite Receiver


IPTV Receiver Specifications:

1.In what color can make:Black/white/silver
2.Front panel:Various for choose, Mental Case 110/180/220*38*120mm
3.Solution: Mstar7816 solution:MPEG4 H.264 HD DVB-S2 Satellite IPTV Receiver & USB 2.0  PVR & HDMI & Media Player

IPTV Receiver Features:

1. Fully DVB-S/DVB-S2/MPEG-2/HD MPEG-4/H.264 compliant
2. SCPC & MCPC receivable from C/Ku band satellites,
3. Support Full HD 1080P, HDMI 576i, 576p, 720p,1080i,1080p
4. DiSEqC 1.0/1.1/1.2/1.3(USALS) supported
5. Aspect ratio 16:9 and 4:3
6. CVBS/RGB/YPbPr/HDMI/Scart output supported,
7. Universal LNB, NIT search support
8. DiSEqC1.0/DiSEqC1.2 and USALS protocols
9. Electronic program guide (EPG), VBI Teletext, Supports up to 64 satellites
10. Up to 2,500 transponders, Frequency range: 950 -- 2,150MHz
11. USB 2.0 port PVR, multi-media player
12. Support up to 5000 channels
13. Video resolution: 576i, 576p, 720p and 1080i,1080p
14. Auto/Manual Program search, Multi-language supported
15. USB 2.0 for PVR, Timeshift, Software upgrade, Multimeida Playback, OTA software upgrade
16. Transmission mode: LDPC/BCH (DVB-S2) 8PSK/QPSK, DVB-S QPSK
17. Multimedia format: Picture: JPEG,BMP,PNG, Audio: MP3/M4A/AAC/WMA/ASF, Video: MKV、AVI、DIVX、XVID、MOV、VOB、FLV、3GP、DAT MPEG、MPG、MP4、TS、TRP …
18.Accessories: User Manual,  Remote control,  RCA Cable
19.Optional Accesssories:Scart Cable (optional),  Antenna (optional),  HDMI Cable (optional)

More FTA Satellite Receiver Specifications:

1.Powerful Multimedia Features
2.Photo: JPEG, BMP, PNG
3.Audio: MP3/M4A/AAC/WMA/ASF
4.Video:MKV,AVI,DIVX,XVID,MOV,VOB,FLV,3GP,DAT,MPEG,MPG,MP4,TS,TRP …

FTA Satellite Receiver Tuner:

1..Input frequency: 950 to 2,150MHz
2.Input level: -79 to -11dBm
3.Symbol rate: 1 to 45M
4.Input impedance: 75 Ω

FTA Satellite Receiver Channel Decoding:

1.Wave form: 64/16/4QAM
2.Demodulation: QPSK、8PSK、16APSK、32APSK, (DVB-S /S2)
3.Transmission mode Core : LDPC/BCH (DVB-S2) 8PSK/QPSK,DVB-S QPSK
4.Rate: 1/2, 2/3, 3/5, 3/4, 4/5, 5/6, 8/9, and 9/10

FTA Satellite Receiver Demultiplexer:

1.Standard: ISO/IEC 13818-1, MPEG-2TS
2.Symbol rate: 1 to 45M

FTA Satellite Receiver Video Decoding:

1.Standard:ISO/IEC13818-14 -2/-3/-7,MPEG-2/MPEG-4AVC/H.264,Divx
2.Aspect ratio: 4:3, 16:9
3.Video format: PAL / NTSC/ AUTO
4.Video resolution: 1080p/1080i/720p/576p/576i(PAL),1080p/1080i/720p/480p/480i(NTSC)

FTA Satellite Receiver Audio Decoding

1.Standard: ISO/IEC 13818-1 -2/-3/-7
2.Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3
3.Output Mode: L/R, Coaxial, HDMI, Scart
4.Sampling frequency:32, 44.1, 48KHz

FTA Satellite Receiver Processor and Memory

1.CPU: Mstar MST7816
2.Frequency: 216 MHz
3.SDRAM: 1GB
4.Flash Memory:64MB

DVB-S2 MPEG4 Satellite Receiver AV Output

1.Video de-emphasis: CCIR REC.405-1, 1080i
2.Video bandwidth: 5.5 MHz
3.Video output impedance:75 Ω
4.Video output level: 1.0Vp-p
5.Audio output: Coaxial, L/R, HDMI
6.Audio output frequency: 20Hz ~ 20KHz
7.Audio output impedance:Low
8.Audio output level: A 1.0Vrms ± 2dB into 10K

DVB-S2 MPEG4 Satellite Receiver Hardware Interface

1.Indicators: Power, signal lock
2.IR Receiver: 38KHz
3.AV output:  YUV, HDMI, Composite Video
4.RF Input: 75Ω F Type Female Connector
5.Loop Through Out: 75Ω F Type Female Connector
6.USB:  USB2.0
7.Power input Spec.: 90—260V AC 8W max

DVB-S2 MPEG4 Satellite Receiver 180mm Metal casing

Giftbox: 205*60*180mm
Carton: 385*225*230mm (6pcs/Carton)
G.W.: 5.50KG,
N.W.: 5.00KG
20"":10200PCS
40"":21500PCS
40""HQ: 23500PCS
