KODI Media Player With Miracast Device DVB-T2 Antenna TV Receiver Box (HR-GTT1610)

  • Description:Made in Xiyuntech Top STB Manufacturer MOQ:2000PCS DRM(Windvine,Playready,Verimatric Yes(Windvine Level 3 is ready) KODI(XBMC) Media Player With DLNA, Airplay,Smartphone Gamestick and Miracast(Optional) Devices DVB-T2 Single Antenna Android TV Receiver.
  • CPU:Chipset Amlogic S805 Quad-Core Cortex-A5 Architecture Frequency up to 1.5MHz
  • GPU:Chipset S805(Integrated Mail 450) Quad-Core (Integrated Mail GPU)
  • System:OS Version Android 4.4
  • RAM:1GB DDR3(512MB Optional)
  • ROM:8GB Nand/EMMC flash (4/16/32GB Optional)
  • Interface:Charge DC connector *1 DC IN(12V/at least 1000mA);Video output:HDMI *1 1.4a female, Up to 1080P/60Hz;CVBS & Analog audio*1 3.5mm jack;USB port; Ethernet *1; Recovery button *1
  • Email:9657@androidtvbox-factory.com
  • Detail

  • Contact Us

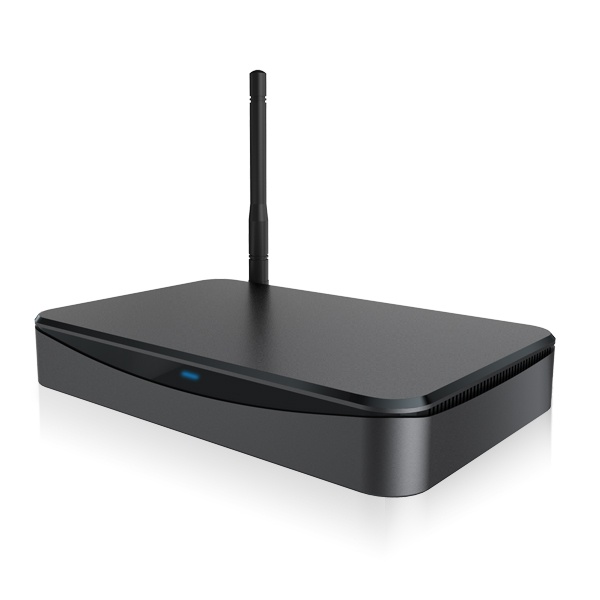

KODI Media Player With Miracast Device DVB-T2 Antenna TV Receiver Box

Model Number: HR-GTT1610

MOQ:2000 PCS

OEM & ODM support

HR-GTT1610 Video:https://www.youtube.com/watch?v=nbh50YTos48

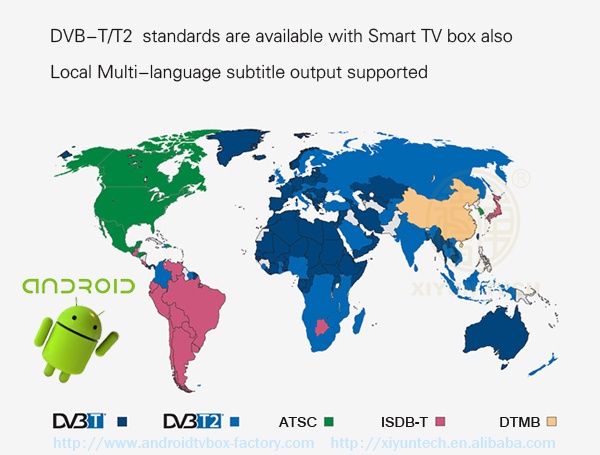

DVB-T2-Antenna

DVB-T2 Antenna

DVB-T2-Antenna Receiver Detail specifications

Item:Android4.4 AML S805+DVB-T2 Receiver

Model number: HR-GTT1610
plastic case size: 162*105*22(mm)
Color:Black

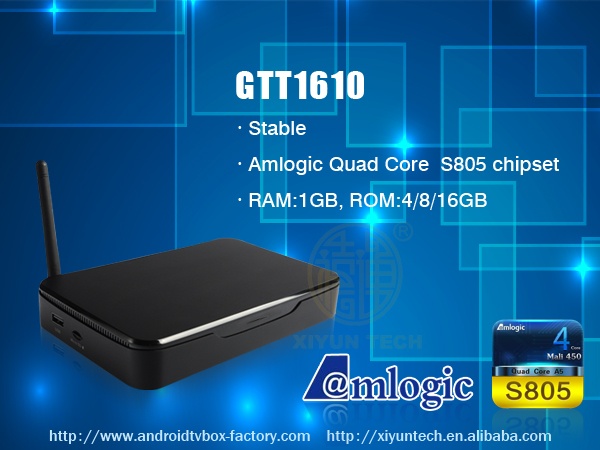

Solution:Amlogic S805 Quad-Core-A5 up to 1.5GHz
Basic parameters
CPU: Chipset Amlogic S805
Architecture Quad-Core Cortex-A5
Frequency up to 1.5MHz

GPU:Chipset S805(Integrated Mail 450)

KODI Media Player

Number of cores:Quad-Core (Integrated Mail GPU)
Frequency up to 600MHz
Video accelerator: Yes
3D accelerator:Yes
RAM Capacity:1GB DDR3(512MB Optional)

ROM Capacity:8GB Nand/EMMC flash (4/16/32GB Optional)

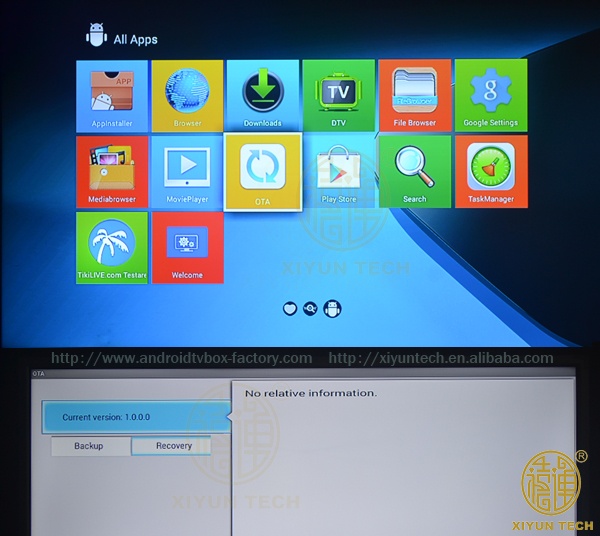

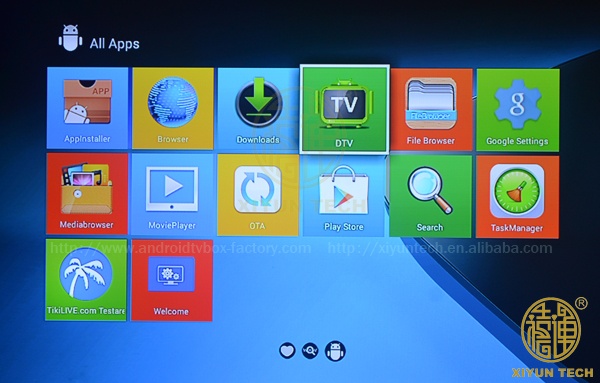

KODI Media Player APP

KODI Media Player APP

External storage:

USB Storage Devices
Supported (Mobile HDD need external power supply)
SATA HDD:NA

Micro SD card: Up to 32GB

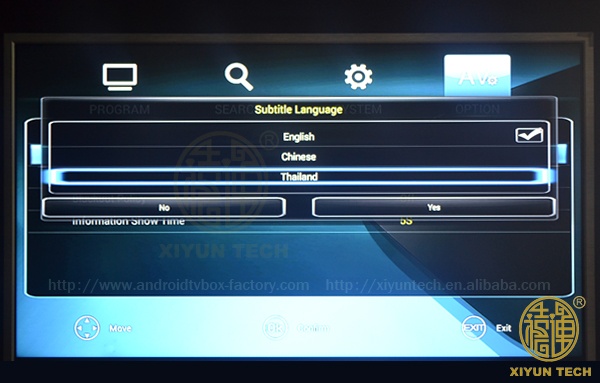

KODI Media Player Language

Software

Operating system: OS Version Android 4.4

Language:Multi-language

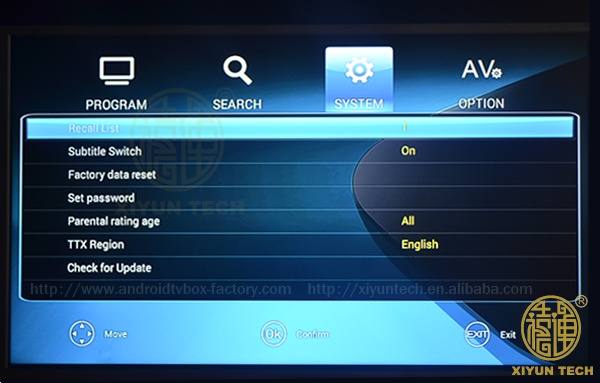

KODI Media Player System

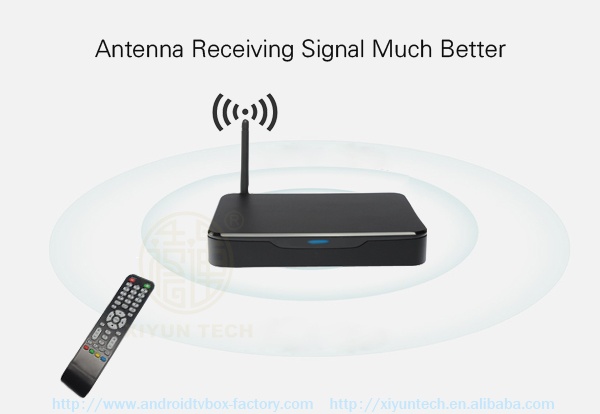

DVB-T2 Antenna Signal

Multimedia:

Video format:DAT, MPG MPEG,VOB,TS,TRP,TP
Video Decoder: MPEG-1,MPEG-2,MPEG-4 ASP,MPEG-4 AVC (H.265,H.264),H.263,WMV9(VC-1),WMV3(VC-1),RV 8/9/10
Online Video:http,hls,rtsp,mms,rtmp

Resolution:Up to 1920*1080P

DVB-T2-Antenna

DVB-T2-Antenna Decoder Format

Audio decoder:MP3,AAC,M4A,WMA,OGG,WAV,FLAC
DTS(required license): Optional,DTS/DTS Master Audio
Dolby(required license) Optional,Dolby Digital/Dolby Digital Plus/True HD
Picture format: RGB444,565,888,YUV420,422,JPEG,BMP, GIF, PNG

Media Sharing:

Miracast(Wi-Fi direct) Optional
DLNA  Optional
Airplay Optional
Smartphone gamestick Optional

DRM:Windvine,Playready,Verimatric Yes(Windvine Level 3 is ready)
IRDA Receiver:Built-in Supported
OTA:OTA background Supported

3rd party launche: XBMC(Kodi) Optional

Network service

Wi-Fi Type; Wi-Fi 802.11b/g/n(820.11ac/a/b/g/n Optional)
Cryptographic algorihms:WPA,WPA2
Mode:AP6181 (AP6210/AP6330/AP6335 Optional)
Frequency:2.4GHz (5.8GHz Optional)
Antenna Type:Single
Bluetooth:Built-in Optional
Mode:AP6210 (AP6330/AP6335 Optional)
Version V4.0
External USB module Support

Interface

Charge DC connector *1 DC IN(12V/at least 1000mA)

Video output:

HDMI *1 1.4a female, Up to 1080P/60Hz

CVBS & Analog audio *1 3.5mm jack

Audio output

Fiber Optic *1 SPDIF
3.5mm Earphone jack:NA
Micro SD: External memory *1 Slot, support  up to 32GB
USB port:USB host *2 USB2.0 normal type
DVB-T/T2 Tuner: *2 one for input, one for ouput(loop out)
Ethernet:Ethernet *1
Button:Recovery button *1

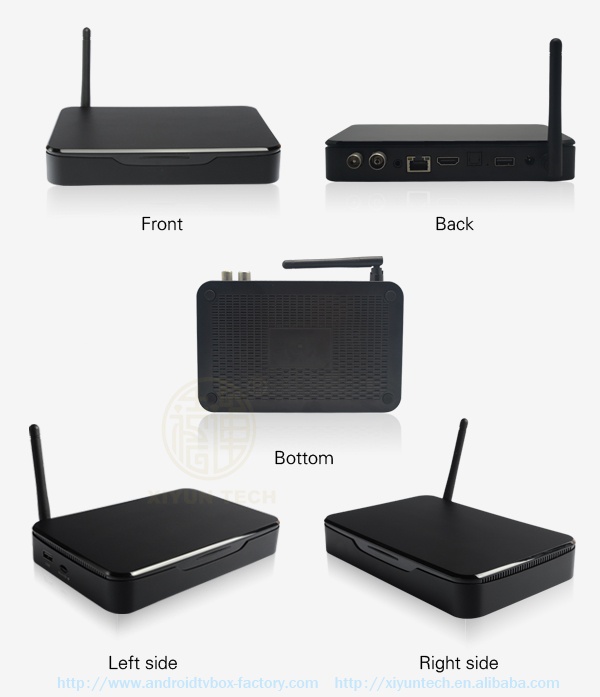

Appearance

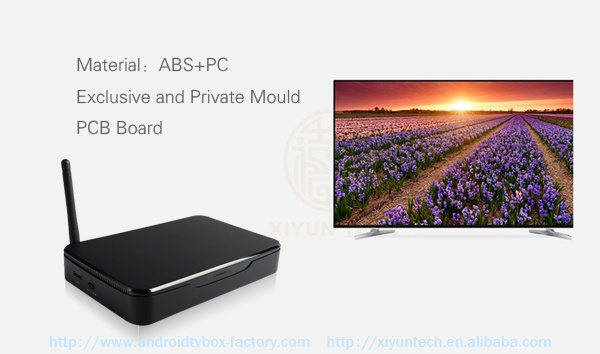

Body Material: ABS+PC
Storage temperature: -10℃ ~+ 50℃
Operating temperature: 0℃ ~ + 35℃

Cerifications(For Unit)

Standarsd:CE TBD when M.P
RoHS TBD when M.P

Others Optional:FCC,3C,TELEC(MIC),NCC,Anatel,KCC,C-tick,PSE,CTS…

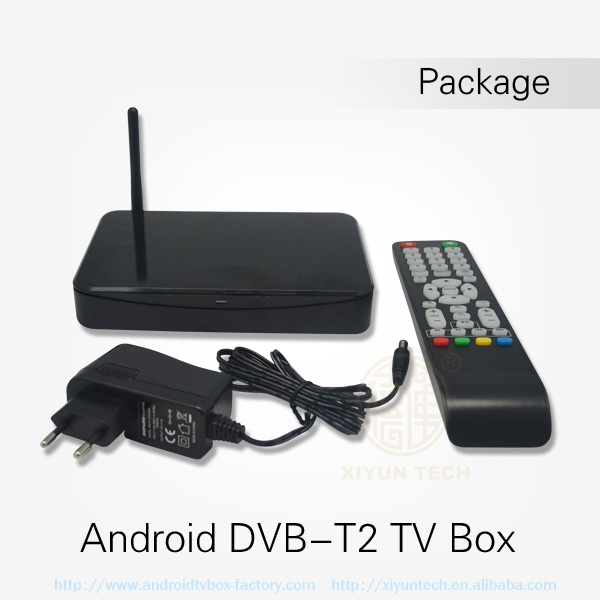

Standart Accessories: User manual, IrDA remote control, AC Adapter
Optional Accessories: 5V, 1.5A Adapter,HDMI cable

Packing:

Unit Size:162x105x22(mm);

Unit Weight: 210g
