New EU DVB C Kabel Receiver DVBT DVBC TV DVB-C Set Top Box for Germany&Austria HR-C61

  • Description:New EU DVB C Kabel Receiver DVBT DVBC TV DVB-C Set Top Box for Germany&Austria HR-C61 with the DVB C Kabel Receiver ,DVB-C Set Top Box,DVBC DVBT for DVBC TV Operators
  • CPU:HD MPEG4 FTA DVB-C FTA MPEG4 H.264 HD DVB-C Set Top Box Receiver & Scarts & Coaxial & CVBS & USB2.0 & PVR & HDMI
  • GPU:Mstar solution
  • System:Mstar7801+ MXL603 TV Tuner
  • RAM:DDR2 512M
  • ROM:32Mb
  • Interface:HDMI, Coaxial, CVBS, L/R AUDIO, YUV
  • Email:9657@androidtvbox-factory.com
  • Detail

  • Contact Us

New EU DVB C Kabel Receiver DVBT DVBC TV DVB-C Set Top Box for Germany&Austria&Netherlands&Poland Markets
HD MPEG4 FTA DVB-C FTA
Model number:HR-C61
Solution:Mstar7801+ MXL603
MOQ:2000 PCS

220mm metal case

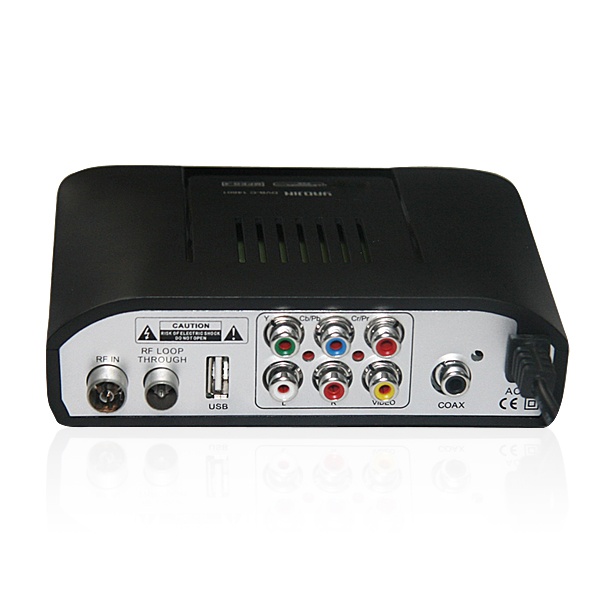

dvb-c-set-top-box

DVB-C-Set-Top-Box Features:

In what color can make:Black/white/silver

Front panel:Case 220/180*160*38mm

1.Fully SD/HD DVB-C compliant,support full HD 1080p
2.Support USB personal video recording (PVR),Timeshift and PPV
3.Support MPEG4 SP & ASP, H.263 P3, DivX Home Theater Profile, JPEG up to 1080P, decodes MP1/2/3, AC3, AAC-LC, HE-AAC audio streams
4.Various USB Hard Disk / Flash memory supported up to 1TB (1000GB),USB media player function  5.Support FAT32,EXT3 and NTFS file system
6.Watch & record the current channel
7.Scheduled recording via EPG, wakeup automatically & record
8.Fast forward & rewind playback (x2, x4, x8,x16, x32)
9.Decoding H.264 HD HP@L4.1 and MPEG-2 HD MP@HL, MPEG-2 SD MP@ML
10.Multi-language list OSD supported
11.Easy and fast software upgrade through USB port
12.Support Auto/NTSC/PAL and 4:3 16:9 wide screen
13.Full-Function IR remote control as well as front panel buttons
14.Parental lock function and 5 Favorite channel groups
15.Channel search in automatic, manual and network search

16.Subtitle and Teletext support

DVB-C Set Top Box Specification:

Media files playback as below:
1.Music: MP3,WMA
2.Photo: JPEG,BMP,PNG
3.Video: MKV、AVI、DIVX、XVID、MOV、VOB、FLV、DAT、MPEG、MPG、MP4、TS…

DVB-C Set Top Box Tuner and Demodulation parameter:

1.RF input frequency:  44MHz~862MHz
2.bandwidth:6/8MHz
3.Demodulation: 16,32,64 , 128,256 QAM
4.Symbol rate: 0.7 ~ 7Mbaud
5.Input impedance:75Ω
6.RF IN connector type: F-type
7.Input and Output: USB, HDMI, Coaxial, CVBS, L/R AUDIO, SCART(YUV), ANT IN, ANT OUT, DC IN
8.Power Consumption: 8W
9.Power Voltage: 100~240V
10.Adaptor Voltage: 5V
11.Power Cord Length: 1M "
12. Accessories User Manual,  Remote control,  RCA Cable, Power adapter
13.ptional Accesssories Scart Cable (optional),  Antenna (optional),  HDMI Cable (optional)

DVB-C Set Top Box Packing List

220mm metal case:
Gift Box size: 265*250*60MM;
Carton QTY: 6pcs;
G.W.: 6.50KGS; N.W.: 7.00KGS;
Carton Size: 270*290*385MM,
20' CTN: 6000pcs;
40' CTN: 12600pcs;
40' HQ: 14200pcs
